How to start making puppets?

Gonzo's Hobbit

Well-Known Member
Joined
Dec 21, 2009
Messages
1,597
Reaction score
181
Don't glue it. It's much better to machine sew the fabric for the mouth to the hole that's cut or patterned for the mouth (the "lips") together and then glue the mouth fabric to the mouth plate afterwards. A little practice is sometimes required, but this will almost always give you the clean, perfect edge that you're looking for.
Okay I have another question pertaining to this. Is there some secret to cutting out the mouth hole or sewing the mouth on. I have lost track of how many times I've done this and it's not coming out straight. I've tried cutting a slit, cutting a bigger slit, cutting a mild hole, cutting a larger hole, changing the shape of the mouth but I cannot get it to look right.


Buck-Beaver

Well-Known Member
Joined
Apr 16, 2002
Messages
4,174
Reaction score
162
You have to pattern the mouth so that it is in an open position so that the mouth can open and close naturally. If it's patterned so that the mouth is closed by default (e.g. you just cut a slit) then fabric has to be displaced every time you try to move the mouth and it doesn't look right.

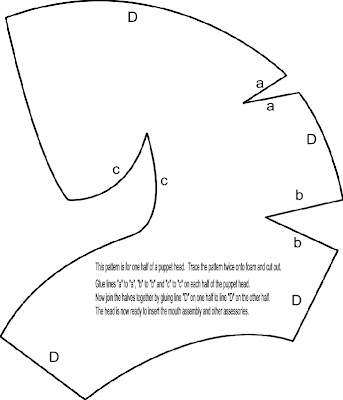

Generally speaking, the head of a moving mouth puppet should look something like this:



Does that help?


Gonzo's Hobbit

Well-Known Member
Joined
Dec 21, 2009
Messages
1,597
Reaction score
181
Yea I think it does. I've been cutting it closed by default because cutting a chunk out that way takes out too much fabric and throws the jaw off. But a slit has been tight and the corner is weird. I haven't been thinking about it in the terms you just put it in. I'm using a different head shape that the pattern you have there but it sounds like the mouth principle would be the same in any case. I will definitely try that. Thanks so much for bearing with me on this thing and all your help Buck.


Buck-Beaver

Well-Known Member
Joined
Apr 16, 2002
Messages
4,174
Reaction score
162
No problem! It is really important to design moving mouth puppets with their mouths open if you're dealing with a flexible material (fabric, latex, silicone, etc.) so the mouth can open properly. "Hard" heads sculpted or cast in wood, plastic or something similar are generally the opposite, you usually carve/sculpt them with their mouths closed so that they can close properly.


Gonzo's Hobbit

Well-Known Member
Joined
Dec 21, 2009
Messages
1,597
Reaction score
181
Oh okay. That's a good thing to keep in mind thanks.

I just realized something, the way I'm doing this, I'm not making the two side pieces and sewing down the middle of the head, I'm doing a front and a back and sewing them down the side. So that makes the mouth thing a little weird.But I'm thinking if I make the front end a little longer vertically that would make the same idea in terms of fabric compensation.


MagicFractal

Active Member
Joined
Aug 11, 2012
Messages
40
Reaction score
5
I've used Sculpey and Fimo for creature design, but not yet the new "Super Sculpey" or "Green Stuff" and probably others worth trying to creatively prototype original designs.

Once a design exists, one could use the new affordable 3d printers should be useful in designing and duplicating heads with replaceable, even real-time changeable facial expressions. CAD type tools allow not only great 3-D faces, but elbows and other joints like fingers, and complex jaw structures like a cow, insect, or denizen of the deep sea.

Some related links on 3d printer capabilities (typically $300 and up range):
http://74fdc.wordpress.com/2012/05/21/3d-printer-art-the-future-of-footwear-sole-design/
http://dev8d.jiscinvolve.org/wp/2010/02/25/reprap-the-self-replicating-3d-printer/
http://hacknmod.com/hack/how-to-make-your-own-3d-printer/


MagicFractal

Active Member
Joined
Aug 11, 2012
Messages
40
Reaction score
5
Buck Beaver, thanks for the link to Puppet Vision Blog at puppetvision.info, one of the best links I've seen yet on the subject. I also noticed that the excellent domain "puppetmaster.info" is available for $12, I can't afford at this time.

I like the editor on this BBS very much, except that it locks down the post in an hour. I've been admin on several BBS and never saw any advantage to that. In this case I can't change something I posted to something better or more correct.

Toy stores offer tiny vacuform machines capable of very nice relief for character heads, extremely light weight, possible to make a small crowd of puppets whose minimal movements could be controlled like any hand puppet, but for example, the direction the crowd is gazing could be swept right or left in unison, linking them all together. That would be suitable to a tennis match in the foreground.

If there were but one puppetmaster, the gaze of the crowd could be varied by foot or knee control with extended cord puppet cable. I'm learning some are using bicycle cables, very durable and available everywhere. Lighter ones with strong fishing line are smaller but good enough for low force actuations like eyelids and eyes and maybe super light vacuformed faces of my example. For fish line weight cable sheaths, there will be sturdy "teflon spaghetti" available at most ham radio stores, capable of great subtlety of movements.


Gonzo's Hobbit

Well-Known Member
Joined
Dec 21, 2009
Messages
1,597
Reaction score
181
I got another question if anyone can answer it. I've looked around and can't seem to find an answer so sorry if it's a repeat. Does anybody know why a mouth will look "frowny" on a puppet? I've made a few and they've all looksed fine, either as if they were smiling or neutral. But for some reason the one I've been working on is tilted down for some reason so it looks like she's frowning all the time. I'm stuck because I'm not sure what I did differently. The top of the mouthpiece is glue to the head foam and it's made out of lightweight material. Are there any other factors that people have noticed?


CaseytheMuppet

Well-Known Member
Joined
Dec 28, 2010
Messages
2,623
Reaction score
1,160
My whatnot is like that. (He's orange) I think they all looked like that. I was wondering that myself.
